Wire Rope Slings & Assemblies

Mechanically spliced slings with aluminium pressed ferrules, hooks, shackles, socketed and swaged terminations, made to length.

Range

  • RBT-1 to RBT-4: Soft Eye & Thimble Eye Slings

    Mechanical splice with aluminium pressed ferrule.

  • RBT-5 & RBT-6: Eye Hook & Clevis Hook Slings

    Factory-fitted hooks for quick rigging.

  • RBT-7 & RBT-8: Shackle & Plate / Beam Clamp Slings

    Terminated with shackles or plate / beam clamps.

  • RBT-9 & RBT-10: Socketed & Swaged Terminations

    Open / closed sockets and swaged end fittings.

  • RBT-11: Basket Hitch Slings

    Double the vertical capacity for balanced loads.

  • RBT-12: Choker Hitch Slings

    Self-tightening hitch for bundles and pipes.

Standards reference

  • EN 13414-1
  • ISO 7531
  • ASME B30.9
  • IS 2762

Sling types

Single part sling configurations

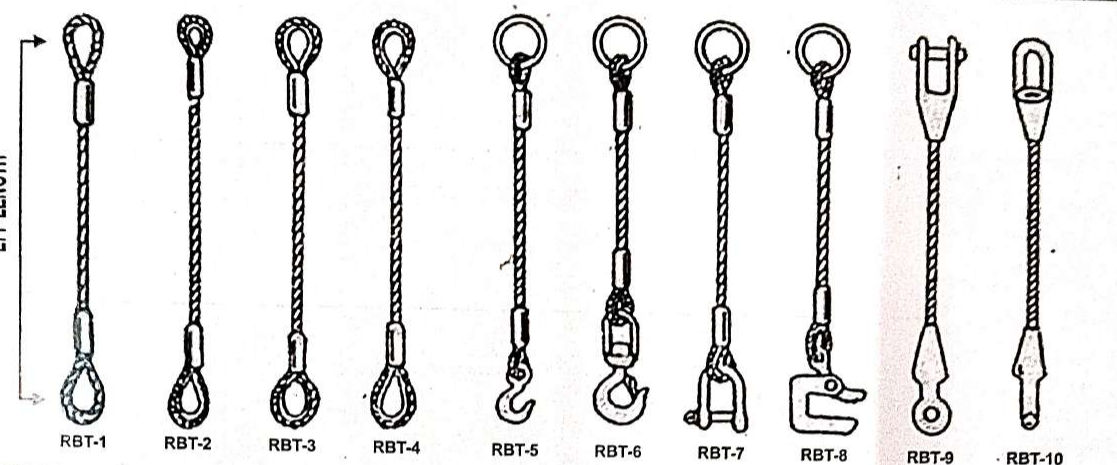

Vertical sling types RBT-1 to RBT-10 with soft eye, thimble eye, hooks, shackles, sockets and swaged ends
Vertical slings RBT-1 to RBT-10. Basket hitch (RBT-11) and choker hitch (RBT-12) use the same terminations.

Load chart

Mechanical sling load capacity

Max. safe working load in kg for single part slings. Safety factor 5:1.

Rope DiaSingle Vertical SWLBasket Hitch SWLChoker Hitch SWL
3 mm70 kg140 kg50 kg
4 mm130 kg260 kg100 kg
5 mm200 kg400 kg190 kg
6 mm250 kg500 kg200 kg
8 mm550 kg1,100 kg210 kg
9 mm670 kg1,340 kg500 kg
10 mm800 kg1,600 kg600 kg
11 mm1,000 kg2,000 kg750 kg
12 mm1,200 kg2,400 kg900 kg
13 mm1,400 kg2,800 kg1,050 kg
14 mm1,750 kg3,500 kg1,300 kg
15 mm2,000 kg4,000 kg1,500 kg
18 mm2,500 kg5,000 kg1,875 kg
19 mm3,000 kg6,000 kg2,260 kg
20 mm3,300 kg6,600 kg2,475 kg
22 mm4,000 kg8,000 kg3,000 kg
24 mm4,600 kg9,200 kg3,450 kg
25 mm5,000 kg10,000 kg3,750 kg
28 mm6,500 kg13,000 kg4,875 kg
32 mm8,000 kg16,000 kg6,000 kg
35 mm9,200 kg18,400 kg6,900 kg
36 mm10,400 kg20,800 kg7,800 kg
38 mm12,000 kg24,000 kg9,000 kg
40 mm12,700 kg25,400 kg9,626 kg
44 mm16,700 kg33,400 kg12,625 kg
48 mm20,000 kg40,000 kg15,000 kg
52 mm23,000 kg46,000 kg17,250 kg

Ferrule secured eye terminals: breaking & working loads

Dia
mm		Minimum Breaking Load kN (kgf)Safe Working Load kN (kgf)
6 x 196 x 366 x 376 x 196 x 366 x 37
47.8 (795)––1.3 (132)––
512.2 (1,240)––2.3 (206)––
617.6 (1,790)–16.9 (1,720)2.9 (298)–2.8 (286)
723.9 (2,440)–23.0 (2,340)4.0 (406)–3.8 (390)
831.2 (3,180)–30.0 (3,060)5.2 (530)–5.0 (510)
939.6 (4,040)42.3 (4,315)38.0 (3,870)6.6 (673)7.0 (714)6.3 (645)
1048.8 (4,870)52.2 (5,324)46.9 (4,780)8.1 (829)8.7 (887)7.8 (796)
1159.1 (6,020)64 (6,528)56.6 (5,770)9.8 (1,003)10.7 (1,091)9.4 (961)
1270.4 (7,180)75.6 (7,711)61.3 (6,860)11.7 (1,196)12.6 (1,285)10.2 (1,143)
1382.4 (8,400)88.3 (9,007)79.3 (8,080)13.9 (1,400)14.7 (1,499)13.2 (1,346)
1495.2 (9,700)103 (10,506)91.7 (9,350)15.8 (1,616)17.2 (1,745)15.3 (1,556)
16126 (12,800)134 (13,668)120 (12,200)21.0 (2,133)22.3 (2,275)20.0 (2,033)
18158 (16,100)169 (17,238)152 (15,500)26.3 (2,683)28.16 (2,872)25.3 (2,583)
20195 (19,900)210 (21,420)187 (19,100)32.5 (3,316)35.0 (3,570)31.1 (3,183)
22236 (24,100)253 (25,806)227 (23,100)39.3 (4,016)42.16 (4,300)37.8 (3,850)
24282 (28,700)302 (30,804)271 (27,600)47.0 (4,783)50.33 (5,134)45.1 (4,600)
26330 (33,600)354 (36,108)317 (32,300)55.0 (5,600)59.0 (6,018)52.8 (5,366)
28383 (39,000)411 (41,922)367 (37,400)63.8 (6,500)68.5 (6,987)61.1 (6,233)
32500 (51,000)536 (54,672)481 (49,000)83.3 (8,500)89.33 (9,112)80.1 (8,166)
36633 (64,500)680 (69,360)608 (62,000)105 (10,750)113.33 (11,560)101 (10,333)
40781 (79,600)839 (85,578)749 (76,400)130 (13,266)140.0 (14,280)125 (12,733)
44905 (92,300)1018 (103,836)982 (100,100)151 (15,383)169.7 (17,309)163 (16,683)
481085 (110,600)–1184 (120,700)181 (18,433)–197 (20,116)
521252 (127,600)–1345 (137,100)208 (21,266)–224 (22,850)
561447 (147,500)–1578 (160,900)241 (24,583)–263 (26,816)

For guidance only. Always derate for sling angle, hitch type and condition of the rope. Confirm with our team for critical lifts.
